S -9 DYNAMO HUB 6V3W 646~716mm

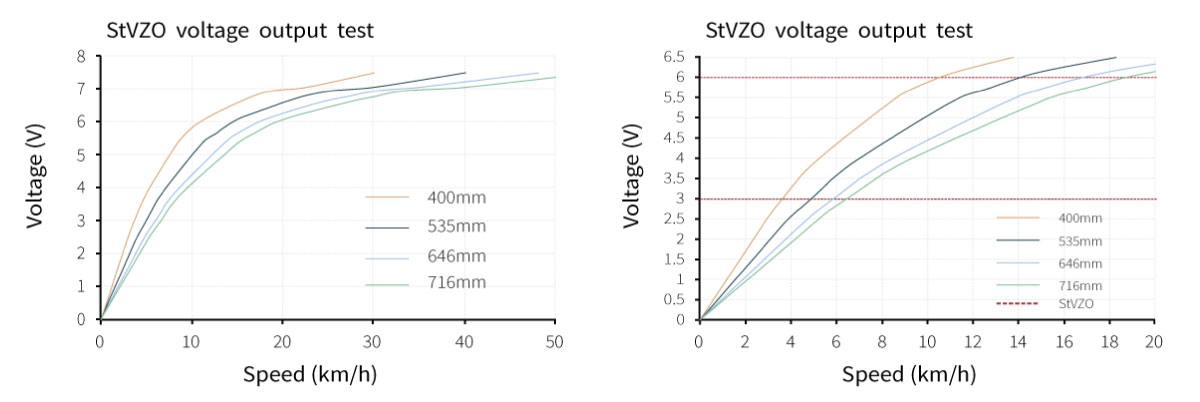

Test Report Test Report
Test Report

Suitable for all different sized wheels

From wheel size 400mm(16”) to 535mm(20“):

The 9 series output perfectly matches German StVZO 6V3W/20” regulation. As can be seen from the table, from wheel size 400mm(16”) to 535mm(20”), the 9 series output is designed to meet StVZO regulation.

From wheel size 646mm(26”) to 716mm(28”):

According to German StVZO, it requires 3V output at a low speed of 5km/h. If the 9 series is set on wheel sizes of 646mm(26”) and 716mm(28”), it offers 3V output speed at 5.8km/h and 6.4km/h respectively. To have 3V output, it only needs to slightly increase speed up to 1.4km/h.

Furthermore, according to German StVZO 6V3W regulation, it requires 5.7V output at 15km/h. If we set the 9 series on wheel sizes of 646mm(26”) and 716mm(28”), this 9 series offers 5.7V output when speed at 15.7km/h and 17.7 km/h respectively. To have 5.7V output, it only needs to increase speed up to 2.7km/h. As for 6V3W, the German StVZO approved hubs in the current market normally offer 6V3W output when speed around 17km/h.

The SP 9 series offers 6V3W output for 646mm(26”) and 716mm(28”) wheels when speed at 16.7km/h and 18.6km/h respectively.

SL-9

Performance as its inspring design faith

SL-9 BG

SV-9

Superior technology fullfilled with precision

SV-9 BG

SV-9-FB

The 1st dynamo hub under 300g

SV-9-FB BG

COMPARE

SL-9 Product Image

SL-9

Weight 323g

Axle Type QR

Brake Type Centerlock Brake

Spoke P.C.D 45mm

Flange Diameter 53mm

O.L.D 100mm

Max Hub Diameter 50mm

Spoke Holes 24H/28H/32H/36H

Color

SV-9 Product Image

SV-9

Weight 309g

Axle Type QR

Brake Type V Brake

Spoke P.C.D 45mm

Flange Diameter 53mm

O.L.D 100mm

Max Hub Diameter 50mm

Spoke Holes 20H/24H/28H/32H/36H

Color

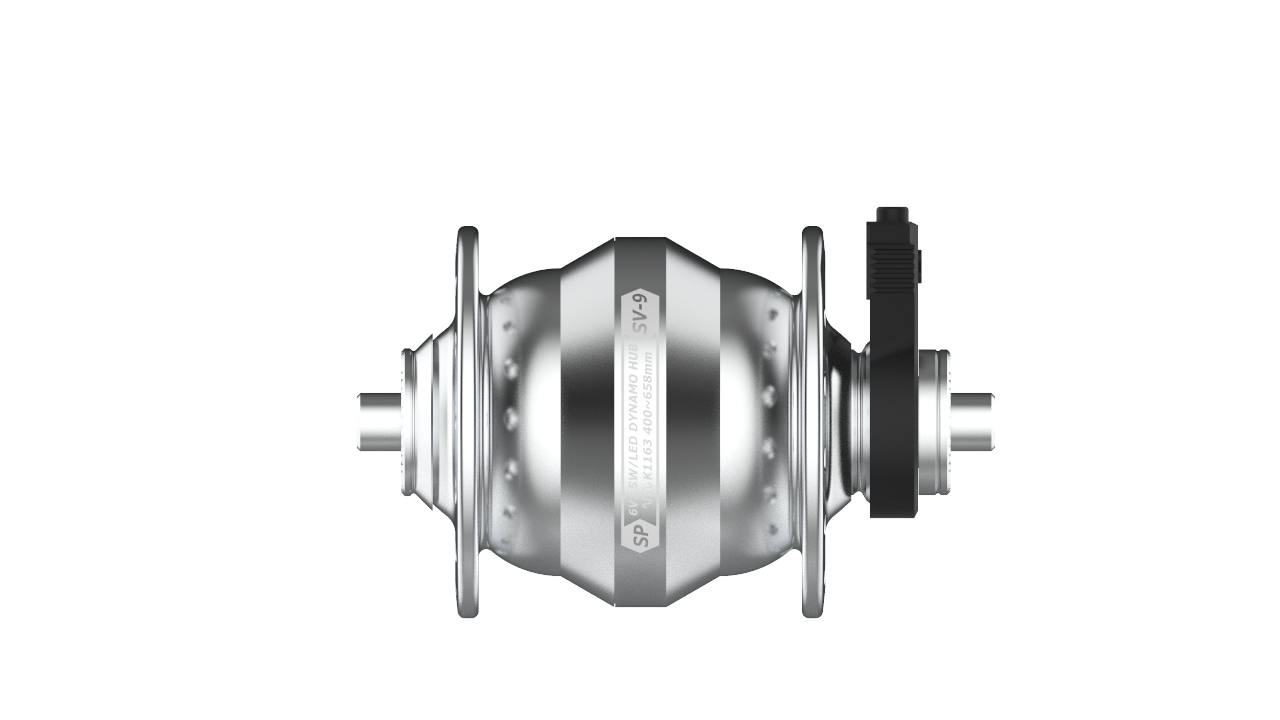

SV-9-FB Product Image

SV-9-FB

Weight 299g

Axle Type QR

Brake Type V Brake

Spoke P.C.D 45mm

Flange Diameter 53mm

O.L.D 74mm

Max Hub Diameter 50mm

Spoke Holes 28H

Color
